In vMix, graphics placed on top of other sources are known as Overlays. This will cut or take the input directly to output without any transitions. Press the number of the input on the Program row that you want to assign to the Program or Output. Press the number of the input on the Preview row that you want to assign to Preview. Inputs can be dragged and dropped in vMix to position the most frequently used sources for use by the control surface. The Control Surface provides access to the first 12 inputs. These correspond to numbers on the Overlay, Program and Preview rows on the Control Surface. The Control Surface uses an industry standard cross point layout consisting of Preview, Program and Overlay keys.Įach input in vMix has a number next to the input name. If you plug the unit in while vMix is running, you may need to restart vMix to recognize the Control Surface is connected. When using the Control Surface, it must be plugged in prior to opening vMix in order to be recognized. The lights should flash briefly indicating the unit is receiving power over the USB connection.

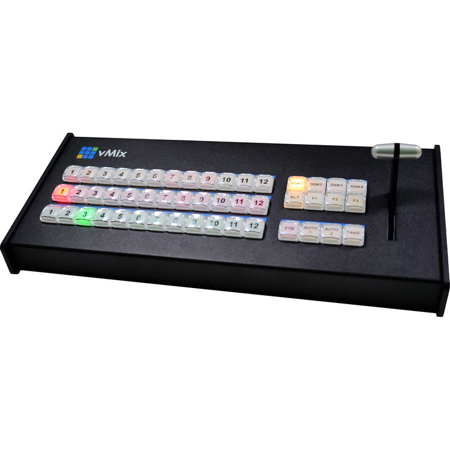

Plug in USB cable from vMix Control Surface to Computer. VMix Control Surface is compatible with all installations of vMix version 15 and beyond. Once installed, verify you have the latest version of vMix. Run the installer and accept the prompts to install. The following is a User Guide that describes the capabilities of each of the buttons and controls. In this new window, select "Home Network".VMix Control Surface is an optional hardware control surface for vMix that connects via USB. To change this setting, click on the link below the network name and a new window will pop up. It will either list "Home", "Work" or "Public".
Under the name should list the current security setting. In the Network and Sharing Center, the network that you are currently connected to will be displayed along with an icon. This can be changed by right clicking the network icon on the bottom right of windows and selecting "Open Network and Sharing Center". Setting this to "Work" or "Public" will block vDesk from connecting to vMix. ******NOTE****** The host vMix computer must have its network set to "Home". Record, Stream, External, FadeToBlack and Take buttons 4 user programmable buttons (programmed within vMix "SurfaceF1", "SurfaceF2", "SurfaceF3" and "SurfaceF4") 4 DSK buttons to control up to 4 overlay channels
Play, Pause & Repeat clips from the audio controller Toggle Master, A-G bus assignment for audio Simply press the IP address within vMix CS and type in the IP address of the computer running vMix. vMix CS also provides the feel of a traditional hardware switcher. This app enables you to control vMix from anywhere within your network. VMix CS is a software control surface for controlling the video switching program vMix.
